Thermal Imaging in SWIR

The LineCam12 is a digital linescan camera for imaging in the SWIR and visible bands (0.4-1.7 μm).  It has two digital output formats USB3 Vision and Camera Link™ . The device can even be powered by USB3 in most applications.  The LineCam12 utilizes a 1024x1 state of the art InGaAs linear array imager on 12.5 μm pitch that was built for both machine vision and spectroscopy.

LineCAM12-12.5-1.7-T  (Spectroscopy applications)

LineCAM12-12.5-1.7-M (Machine Vision applications)

The LineCam12 also is available in an OEM version stripped of its housing.  This camera can be customized to fit in various user systems.  We can also add custom filters to the array.

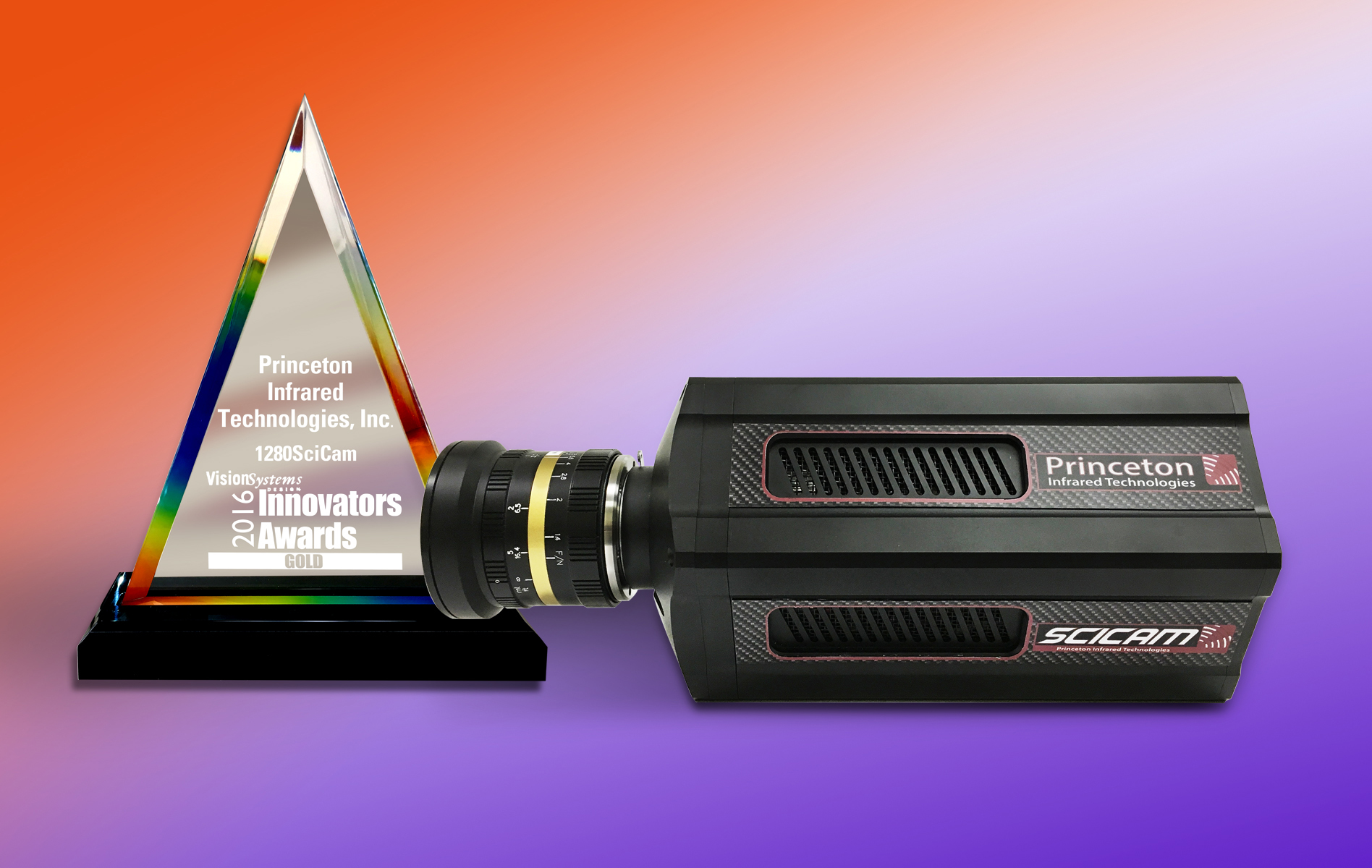

This non-ITAR reduced weight (3000g) lattice matched, InGaAs camera allows for high resolution SWIR imaging at 1280x1024 with high frame rates >93 frames per second (fps) at full frame size. This small pitch array,12 μm, combined with the high quantum efficiency of lattice matched InGaAs enables impressive imaging in the SWIR and visible spectral bands.  The camera has the capability of four temperature setpoints, -20°C (no cooling), 0°C (fan cooling), -40°C, or -60°C (water cooled), using a 4 stage TEC integrated in a vacuum-sealed package. This advance digital array (PIRT1280A1-12) on board is a product of Princeton Infrared's decades of experience in InGaAs processing.

This advanced digital focal plane array (PIRT1280A1-12) offers 14-bit digital output with a low read noise of <90e- with no image lag. This combined with low dark current InGaAs and 4 stage TEC will enable high sensitivity imaging with very long integration times >2 minutes. The camera utilizes a medium based Camera Link™ to allow for fast, full frame rate imaging >93 frames per second at 1280x1024 at 14 bits. The InGaAs detector provides high quantum efficiency response in the shortwave infrared as well as in the visible wavelength range, from 0.4 µm to 1.7 µm.

This powerful camera system integrates to most frame grabber cards and delivers excellent performance in high-speed machine vision applications as well as microscopy where the small pitch long integration time is advantageous. The 1280SciCam is also an excellent choice for life science science applications, as well as astronomical and low signal photon emission systems.  Standard lens adapters are available for easy microscope and telescope integration.
